  Indicator

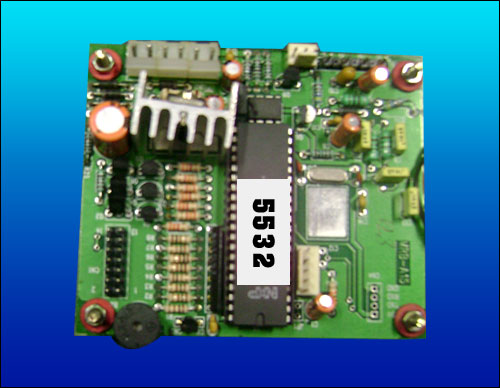

Weighing PCB >> PCB Jewellery 5532
Micro Controller

89C52
ADC CS 5532 (Cirrus Logic)
Internal Counts 16/24 Bit Sigma Delta ADC >> 64k to 16 Million Int Counts.
Operating Temperature -40 to 85°C
External Counts 100,000 Counts
Sampling Rate ’120’ Samples per second
Display 6 digits 7 Segments – LED
Application :
  • Precision Weighing Scale – Jewellery Scale.
  • Single Display Counting Feature
  • Carat Conversion.
  • RS232 Computer Interface.
