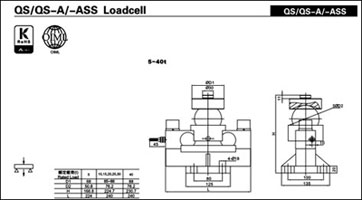

Weigh Bridge >> Keli QS – A

Description :

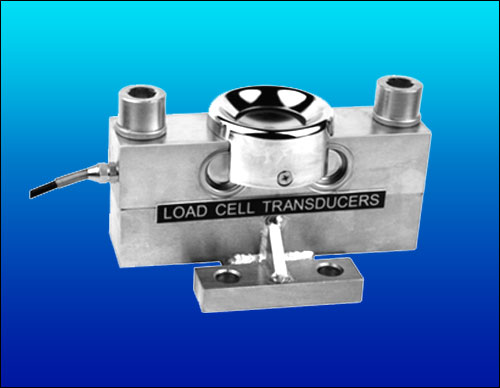

Model Keli QS - A double ended shear beam Load Cell is ideally suited for truck, track, tank and hopper weighing applications. From its nickel exterior protection to its triple-seal gage area, this cell is designed to withstand the rigorous of harsh environmental conditions.

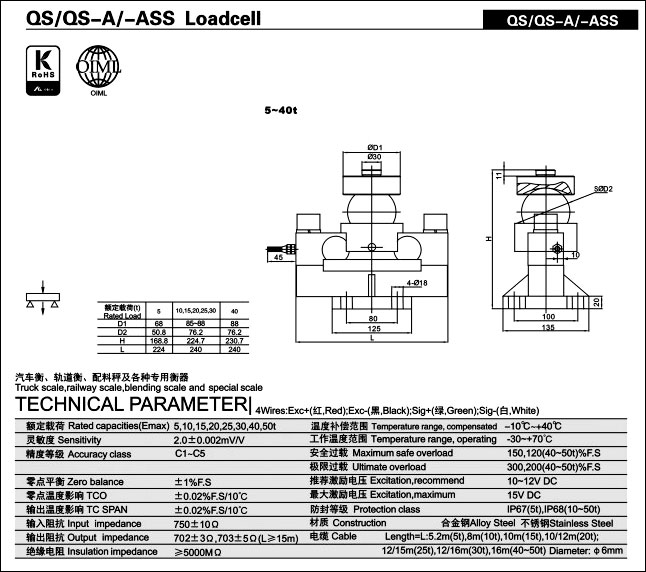

Performance Specification
Standard Capacities	5, 10, 20, 30, 40, 50 T
Excitation Voltage	10 VDC- Maximum 15 VDC
Nominal Output	3.0 mV/ V
Non - Linearity	< ±0.025% FSO
Hysteresis	< ±0.02% FSO
Non-Repeatability	< ±0.01% FSO
Creep (30 minutes)	< ±0.03% FSO
Zero Balance	±1.0% FSO
Input Resistance	770 ± 20 Ohms
Output Resistance	700 ± 7 Ohms
Insulation Resistance (50 VDC)	> 1000 Mega Ohms
Safe Overload of Rated Capacity	150%
Ultimate Overload of Rated Capacity	300%
Temp. Compensated Range	0-60 ⁰C
Temperature Effect on Output	< 0.0015% FSO/ ⁰C
Temperature Effect on Zero	< 0.0020% FSO/ ⁰C
Finish & Construction	Electroless Nickel Plated Tool Steel
Environmental Protection Class	IP68
