| Mini Platform >> CEL 619 |
| Description : |

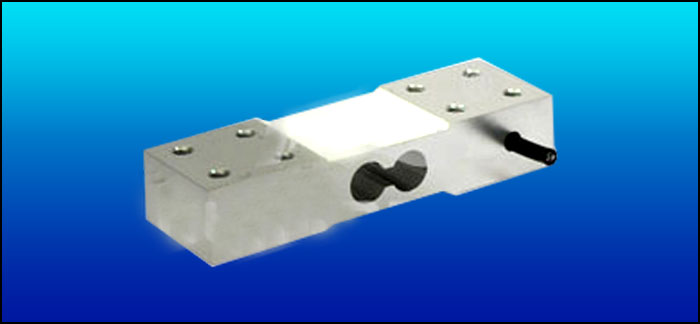

| Model CEL 619 is a Strain Gage based low profile bending beam Load Cell and is ideal for Bench, Counting, Floor, Postal and Retail Scales. It is designed for low eccentric load sensitivity. It is Constructed from Anodized Alluminum Alloy. |
 |

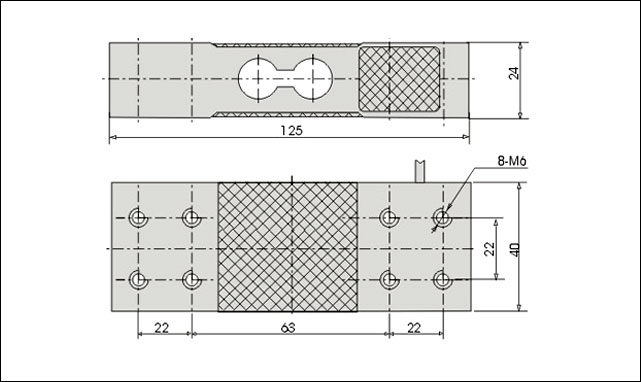

| Dimension (mm) : Size: 125x40x24(mm) Thread hole: M6 |
|
 |
| Wiring Scheme |
Red + (Input +) White - (Output -) Black - (Input -) Green + (Output +)
|
| |
| Performance Specification |
| Standard Capacities |
100, 120, 200 Kgf |
| Excitation Voltage |
10 VDC- Maximum
15 VDC |
| Nominal Output |
2.0 mV/ V |
| Non - Linearity |
< ±0.025% FSO |
| Hysteresis |
< ±0.02% FSO |
| Non-Repeatability |
< ±0.01% FSO |
| Creep (30 minutes) |
< ±0.03% FSO |
| Zero Balance |
±1.0% FSO |
| Input Resistance |
400 ± 15 Ohms |
| Output Resistance |
350 ± 5 Ohms |
| Insulation Resistance (50 VDC) |
> 1000 Mega
Ohms |
| Cable Length (4 Core Screened) |
500 mm.
Minimum |
| Safe Overload of Rated Capacity |
150% |
| Ultimate Overload of Rated Capacity |
200% |
| Temp. Compensated Range |
0-60 0C |
| Temperature Effect on Output |
< 0.0015% FSO/ 0C |
| Temperature Effect on Zero |
< 0.0020% FSO/ 0C |
| Platter Size |
400mm X 400mm |
| Tightening Torque |
1.5 m.kg. |
| Finish & Construction |
Aluminium
Alloy |
| Environmental Protection Class |
IP65 |
|
|
| |
|
| |
|
|
 |
