Load Cell

 Table Top >> CEL 601 AA
Description :

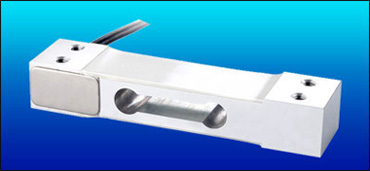

This is an economical Load Cell meant for off-centre loading applications. It is used in bench, counting and postal Scales. It is strain gauge based Cell constructed from Aluminum Alloy for better sensitivity.

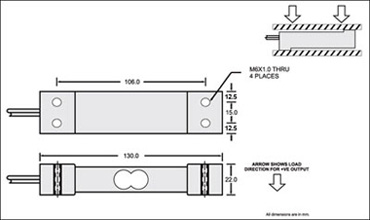

Dimension (mm) : Size: 130x40x22(mm) Thread hole: M6
Wiring Scheme

Red + (Input +) White - (Output -) Black - (Input -) Green + (Output +)


Performance Specification
Standard Capacities 40, 60, 80, 100, 120, 200 kgf.
Excitation Voltage 10 VDC- Maximum 15 VDC
Nominal Output 2.0 mV/ V
Non - Linearity < ±0.025% FSO
Hysteresis < ±0.02% FSO
Non-Repeatability < ±0.01% FSO
Creep (30 minutes) < ±0.03% FSO
Zero Balance ±1.0% FSO
Input Resistance 400 ± 15 Ohms
Output Resistance 350 ± 5 Ohms
Insulation Resistance (50 VDC) > 1000 Mega Ohms
Cable Length (4 Core Screened) 500 mm. Minimum
Safe Overload of Rated Capacity 150%
Ultimate Overload of Rated Capacity 200%
Temp. Compensated Range 0-60 0C
Temperature Effect on Output < 0.0015% FSO/ 0C
Temperature Effect on Zero < 0.0020% FSO/ 0C
Platter Size 300mm X 300mm
Eccentric Load Effect < 0.02% of FSO at 1/3 rated load placed within the specified sized platter
Deflection < 0.5 mm at FSO
Tightening Torque 1.5 m.kg.
Finish & Construction Aluminium Alloy
Environmental Protection Class IP65
