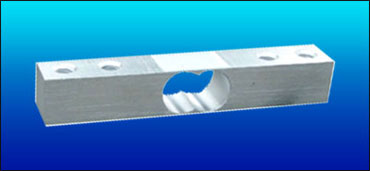

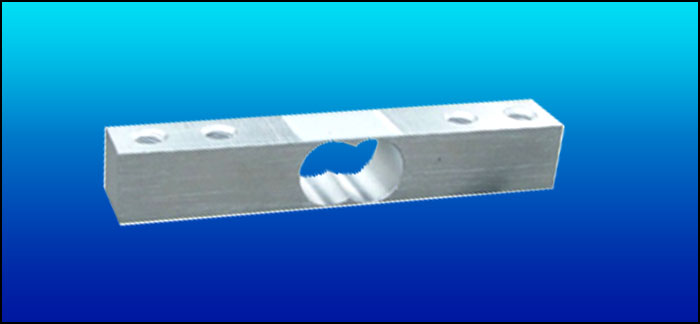

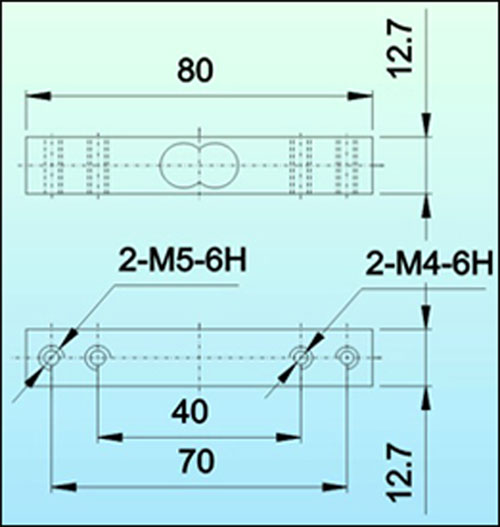

Miniature Load cell >> CEL 611

Description :

This is an economical Load Cell meant for off-centre loading applications. It is used in bench, counting and postal Scales. It is strain gauge based Cell constructed from Aluminum Alloy for better sensitivity.

Performance Specification
Standard Capacities	3, 6, 10, 15, 20, 30, 40, 60 - Kgf
Excitation Voltage	10 VDC- Maximum 15 VDC
Nominal Output	2.0 mV/ V
Non - Linearity	< ±0.025% FSO
Hysteresis	< ±0.02% FSO
Non-Repeatability	< ±0.01% FSO
Creep (30 minutes)	< ±0.03% FSO
Zero Balance	±1.0% FSO
Input Resistance	400 ± 15 Ohms
Output Resistance	350 ± 5 Ohms
Insulation Resistance (50 VDC)	> 1000 Mega Ohms
Cable Length (4 Core Screened)	300 mm. Minimum
Safe Overload of Rated Capacity	150%
Ultimate Overload of Rated Capacity	200%
Temp. Compensated Range	0-60 ⁰C
Temperature Effect on Output	< 0.0015% FSO/ ⁰C
Temperature Effect on Zero	< 0.0020% FSO/ ⁰C
Platter Size	300 mm X 300 mm
Tightening Torque	1.5 m.kg.
Finish & Construction	Aluminium Alloy
Environmental Protection Class	IP65
