Load Cell

S Type >> CEL 301

Description :

Ultra Precision Strain Gage based 'S'-beam Load Cell is Versatile, compact and rugged. It is used for tension measurements, tensile testing, weighing, industrial automation and research applications. It is universal Load Cell Suitable for both-tension and compression modes.

Performance Specification
Standard Capacities	20, 30, 50, 75, 100, 150, 200, 250, 300, 500, 750, - Kgf 1, 1.5, 2.5, 3, 5, 7.5, 10, 15, 20 - Tf
Excitation Voltage	10 VDC- Maximum 15 VDC
Nominal Output	3.0 mV/ V
Non - Linearity	< ±0.025% FSO
Hysteresis	< ±0.02% FSO
Non-Repeatability	< ±0.01% FSO
Creep (30 minutes)	< ±0.03% FSO
Zero Balance	±1.0% FSO
Input Resistance	392 ± 15 Ohms
Output Resistance	350 ± 3 Ohms
Insulation Resistance (50 VDC)	> 1000 Mega Ohms
Cable Length (4 Core Screened)	5 mtr. Minimum
Safe Overload of Rated Capacity	150%
Temp. Compensated Range	0-60 ⁰C
Deflection	< 0.4 mm at FSO
Tightening Torque	See Table Below
Finish & Construction	Electroless Nickel Plated Tool Steel
Environmental Protection Class	IP67

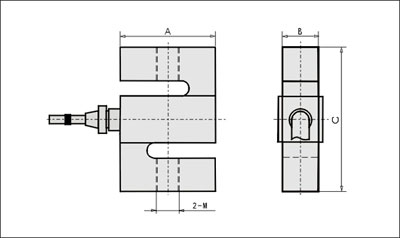

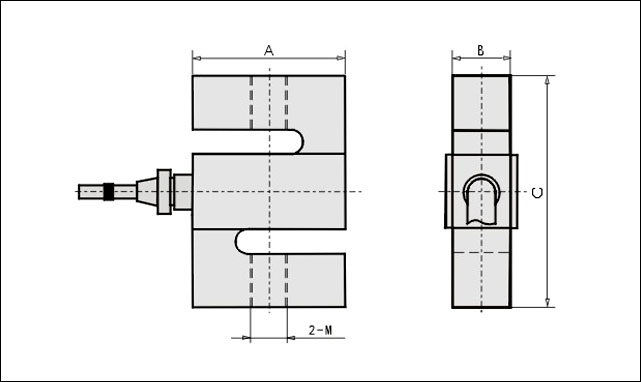

Model	Load(kg)	A	B	C	M
301	10~50	50.8	12.7	64	M8
	100~500	50.8	19	76	M12x1.75
	750~1500	50.8	25.4	76	M12x1.75
	2000~5000	76.2	25.4	108	M18x1.5
301B	250~500(lb)	50.8	19	76	1/2-20UNF
301C	20~100	50	12.5	62	M6
	150~1000	50	25	62	M12x1.25
	1500~3000	75	27	100	M20x1.5
	5000	90	40	140	M24x2
301S	1000~3000	60	30	80	M16
