| Weigh Bridge >> ADI 70310 |
| Description : |

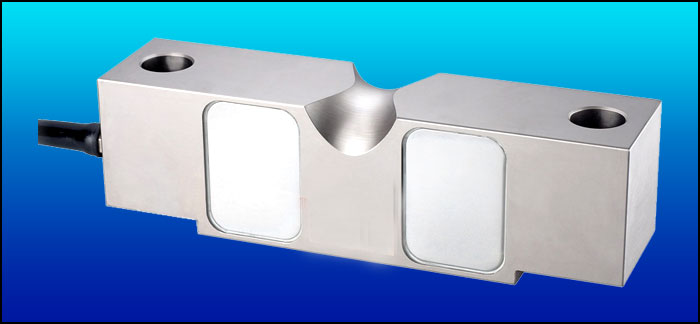

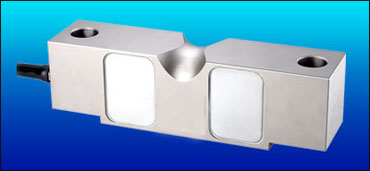

| Model 70310-double ended shear beam Load Cell is ideally suited for truck, track, tank and hopper weighing applications. From its nickel exterior protection to its triple-seal gage area, this cell is designed to withstand the rigorous of harsh environmental conditions. The cell is compatible with the "Unlink" suspension system and is a direct replacement for the 65058. THIS CELL IS USED WITH THE ADI ARTECH WM-V-WEIGH MOUNT. -at an extra cost. |
|
 |
| |
| Performance Specification |
| Standard Capacities |
5,10,15,20,23,30,40,50,75,100 - Tf |
| Excitation Voltage |
10 VDC- Maximum
15 VDC |
| Nominal Output |
3.0 mV/ V |
| Non - Linearity |
< ±0.025% FSO |
| Hysteresis |
< ±0.02% FSO |
| Non-Repeatability |
< ±0.01% FSO |
| Creep (30 minutes) |
< ±0.03% FSO |
| Zero Balance |
±1.0% FSO |
| Input Resistance |
770 ± 20 Ohms |
| Output Resistance |
700 ± 7 Ohms |
| Insulation Resistance (50 VDC) |
> 1000 Mega
Ohms |
| Safe Overload of Rated Capacity |
150% |
| Ultimate Overload of Rated Capacity |
300% |
| Allowable Side Load |
50% |
| Side Load Discrimination |
500:1 |
| Temp. Compensated Range |
0-60 0C |
| Temperature Effect on Output |
< 0.0015% FSO/ 0C |
| Temperature Effect on Zero |
< 0.0020% FSO/ 0C |
| Deflection |
< 0.5 mm at FSO |
| Tightening Torque |
10 m.kg. |
| Finish & Construction |
Electroless
Nickel Plated Tool Steel |
| Environmental Protection Class |
IP68 |
|
| |

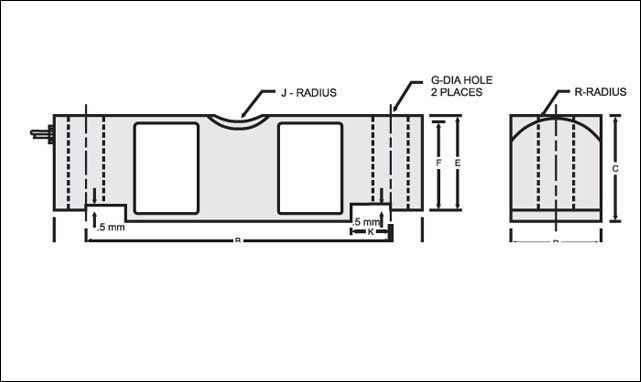

CAPACITY Tf |
A |
B |
C |
D |
E |
F |
G |
J |
R |
K |
Cable Length Mtrs. |
5 to 10 |
197 |
165 |
50 |
43 |
43 |
41 |
17 |
30 |
22 |
35 |
10 |
15 to 30 |
261 |
216 |
75 |
62 |
67 |
65 |
25 |
30 |
35 |
49 |
20 |
40 to 50 |
388 |
324 |
98 |
74 |
87 |
84 |
41 |
40 |
45 |
80 |
20 |
75 to 100 |
490 |
387 |
133 |
108 |
104 |
98 |
41 |
50 |
60 |
102 |
20 |
|
|
| |
|
| |
|
|
 |
