| Plat Form >> ADI 60810 |
| Description : |

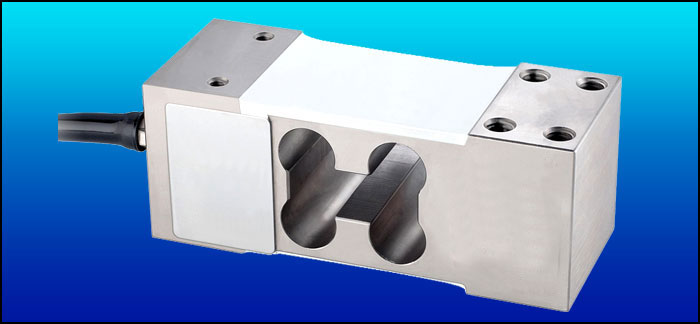

| Model ADI 60810 is a Strain Gage based low profile bending beam Load Cell and is ideal for precision single point platform scale applications. It is designed for low eccentric load sensitivity. This supports large platform Size of 1 mtr. x 1 mtr. It is constructed from tool steel for heavy shock loads. |
 |

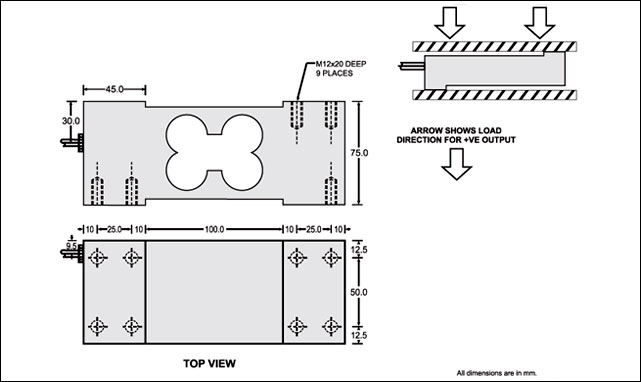

| Dimension (mm) : Size: 190x75x75(mm) Thread hole: M12 |
|
 |
| Wiring Scheme |
Red + (Input +) White - (Output -) Black - (Input -) Green + (Output +)
|
| |
| Performance Specification |
| Standard Capacities |
500, 750, 1000, 1500, 2000, 3000 Kgf |
| Excitation Voltage |
10 VDC- Maximum
15 VDC |
| Nominal Output |
2.0 mV/ V |
| Non - Linearity |
< ±0.025% FSO |
| Hysteresis |
< ±0.02% FSO |
| Non-Repeatability |
< ±0.01% FSO |
| Creep (30 minutes) |
< ±0.03% FSO |
| Zero Balance |
±1.0% FSO |
| Input Resistance |
400 ± 15 Ohms |
| Output Resistance |
350 ± 5 Ohms |
| Safe Overload of Rated Capacity |
150% |
| Ultimate Overload of Rated Capacity |
200% |
| Temp. Compensated Range |
0-60 0C |
| Temperature Effect on Output |
< 0.0015% FSO/ 0C |
| Temperature Effect on Zero |
< 0.0020% FSO/ 0C |
| Platter Size |
1000mm |
| Tightening Torque |
1.5 m.kg. |
| Finish & Construction |
Aluminium
/ Alloy Steel |
| Environmental Protection Class |
IP65 |
|
|
| |
|
| |
|
|
 |
